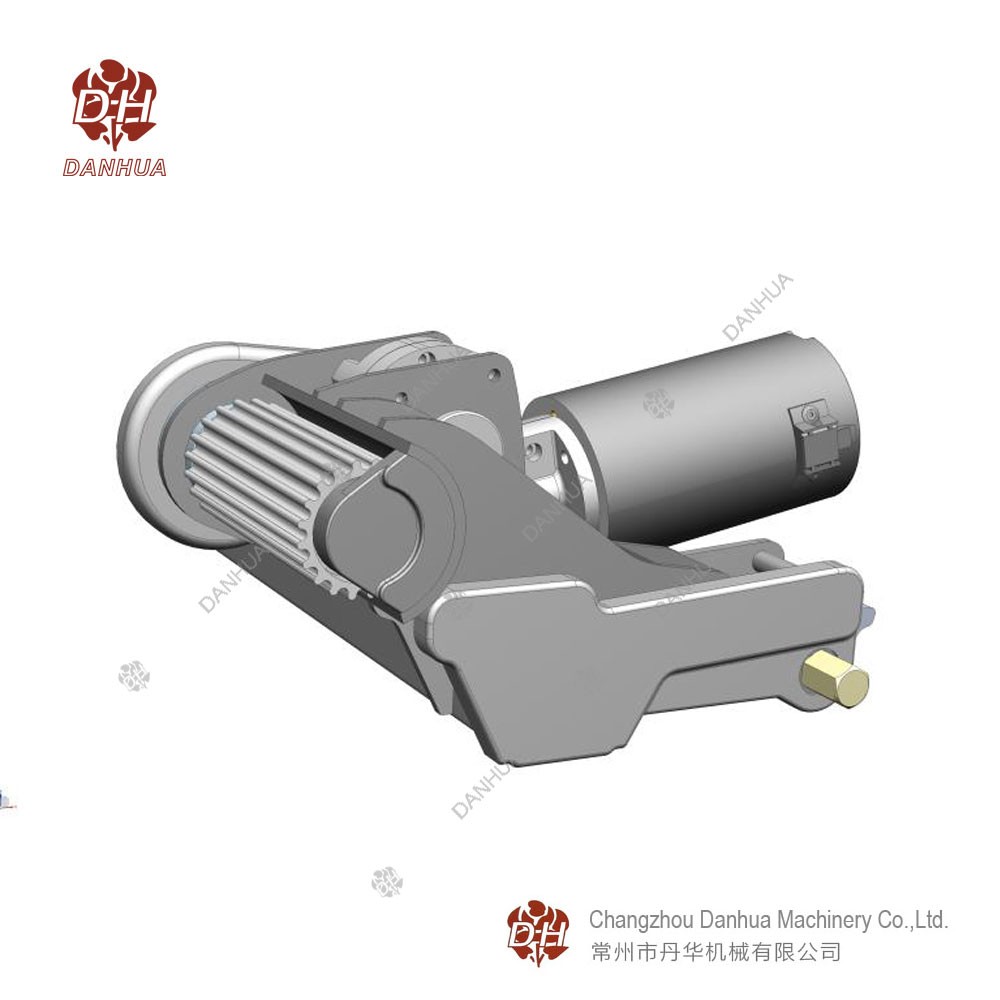

CSM-5

1.Compact structure, small size, light weight, high power.
2.The gearbox adopts a fully sealed automobile shifting, high processing precision, low noise.
3. The fully sealed gearbox adopts liquid lubricating oil, which greatly reduces the wear between the gears, and has high transmission efficiency, long service life.

Place of Origin: China

Brand Name: DANHUA

Specifications

Model	CSM-5
Pressurizing drive rollers	Manual
Soft Start / Stop	YES
Transmission	Gear & Chain
Gear / Chain Box	Aluminum & Plastic
Styling cover of motor	Plastic
Fitting clamp	Aluminum
Weight	29KG
Operational Voltage	12V DC
Power Source (caravan leisure battery)	85 - 110 Ah
Speed	13cm/s
Average Current Consumption	25A
Maximum Current Consumption	100A
Safe Working Load	2200KG
Safe Working Load on 15% Gradient	2000KG
Safe Working Load on 25% Gradient	1800KG
Driving motor decibel	65db
Packing Dimension	705x440x340MM
